Gear Couplings
Regal Rexnord provides an extensive offering of both standard and engineered-to-order gear couplings. Gear couplings are ideal for applications with high torque and misalignment. Product lines include Falk, Jaure, and Kop-Flex, which offer a wide range of solution
Talk to one of our expert sales professionals about how our solutions can efficiently power your business.
Falk Gear Couplings
Falk Lifelign gear couplings are well-suited for general industrial applications. Triple-crowned teeth minimize wear caused by misalignment. By eliminating tip-loading while reducing backlash and radial clearances, Lifelign can help protect connected equipment from damaging loads.
Kop-Flex Gear Couplings
Kop-Flex gear couplings are availabe in a wide range of options including the Fast’s® coupling, which features a lifetime metallic seal and increased lubrication capacity, as well as the Series H Plus coupling, redesigned with higher bore and torque capacities. Kop-Flex products feature best-in-class service and engineering support.
Jaure Gear Couplings
Jaure MT gear couplings are frequently selected by international OEMs due to their reputation for innovation, reliability, and problem solving. Numerous styles and sizes are available, including engineered-to-order designs developed in close collaboration with customers.
Falk G20 Lifelign Gear Couplings
The Falk Lifelign G20 Coupling is a double engagement, close-coupled solution with two flex halves to accommodate offset, angular as well as axial misalignment. Engineered for all horizontal, close-coupled applications including but, not limited to, fans, overhead cranes, conveyors, steel and paper mill equipment. Adaptable to limit shaft end float (LEF) for use with electric motors, generators and other machinery fitted with sleeve bearings. Available in 21 sizes ranging from 1010G through 1160/2160G the Lifelign G20 couplings are engineered to accommodate torque loads up to 14,490,000 (lb-in) and shaft diameters up to 21 inches. Click below to configure the G20 Lifelign Gear coupling specific to your application.
Falk G32 Lifelign Gear Couplings
The Falk Lifelign G32 standard flanged spacer coupling is designed for pump and compressor applications using a standard double engagement coupling and spacer tube with additional fasteners. Stock spacer lengths for quick delivery are available in popular sizes. Special lengths can be ordered. The G32 Standard flanged sleeve spacer can be configured with or without limited end float. Both available in 12 sizes ranging from 1010G through 1070G, the G32 standard flanged spacer coupling is engineered to accommodate torque loads up to 1,197,000 (lb-in) and shaft diameters up to 14.00 inches. Click below to configure the G32 coupling specific to your application.

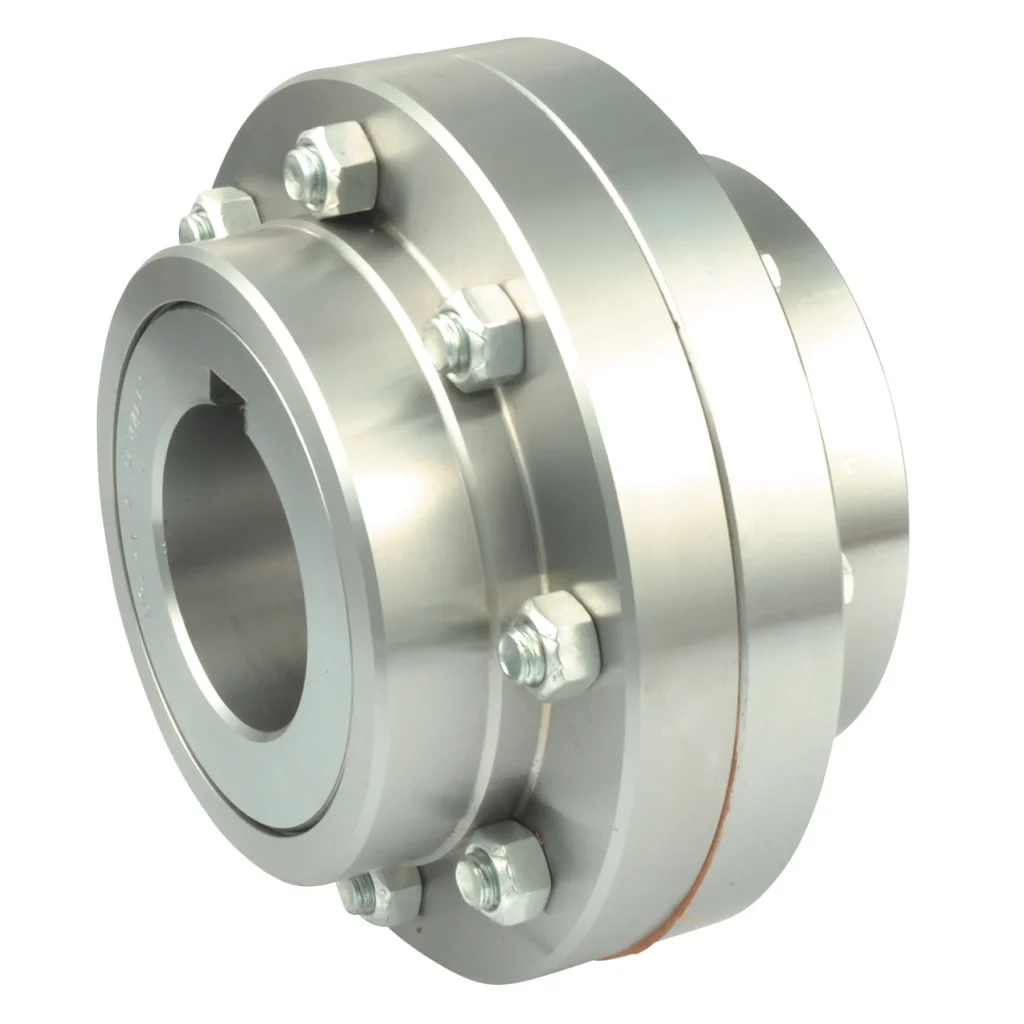

Falk G52 Lifelign Gear Couplings
The Falk Lifelign Type G52 gear Coupling is a single engagement design used with floating shafts or three bearing drive trains. Featuring one flex half and one rigid half, it is suited for accommodating angular misalignment. The Falk Lifelign G52 Coupling is available in 12 sizes ranging from 1010G through 1070G the Lifelign G52 couplings are engineered to accommodate torque loads up to 1,197,000 (lb-in) and shaft diameters up to 14.00 inches. Click below to configure the Type G52 Lifelign gear coupling specific to your application.
Falk G62 Lifelign Gear Couplings
The Falk Lifelign Type G62 Gear Couplings are double or single engagement brakewheel and disc brake couplings used for applications such as cranes, hoists, and conveyors among others. Brakewheel and disc brake couplings accommodate misalignment between connected equipment and eliminate the need for double shaft extensions on motors and gear drives for applications requiring brakes. The Falk Lifelign G62 brakewheel and disc brake couplings are available in 12 sizes ranging from 1010G through 1070G. The Lifelign G62 couplings are engineered to provide braking capacity for torque loads up to 24,700 ft-lb of torque and accommodate shaft diameters up to 14.00 inches.
Falk G63 Lifelign Gear Couplings
The Falk Lifelign Type G63 Gear Couplings are double or single engagement brakewheel and disc brake couplings used for applications such as cranes, hoists, and conveyors among others. Brakewheel and disc brake couplings accommodate misalignment between connected equipment and eliminate the need for double shaft extensions on motors and gear drives for applications requiring brakes. The Falk Lifelign G63 brakewheel and disc brake couplings are available in 12 sizes ranging from 1010G through 1070G. The Lifelign G63 couplings are engineered to provide braking capacity for torque loads up to 24,700 ft-lb of torque and accommodate shaft diameters up to 14.00 inches.
Falk Type G Lifelign Gear Couplings
The Falk Lifelign Type G Large Gear Coupling is a high-capacity double engagement, close-coupled solution for high torque applications. Engineered for all horizontal, close-coupled applications including fans, overhead cranes, conveyors, steel and paper mill equipment, it is adaptable with limited end float for use on electric motors, generators and other machinery fitted with sleeve or straight roller bearings. The Falk Lifelign Type G large gear Coupling is available in 12 sizes ranging from 1010G through 1070G the Lifelign G20/GV20 couplings are engineered to accommodate torque loads up to 72,450,000 (lb-in) or 8,185,000 Nm. and shaft diameters up to 56.50 inches.
